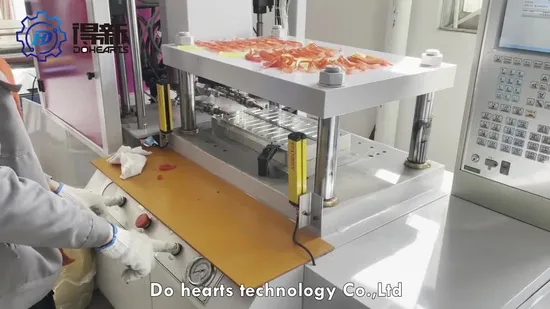

Artificial Fish Lure Swimbait Segmented Multi Jointed Soft Fishing Lures Injection Molding Machine

Basic Info

Model NO.	DH-IM500
Structure	PVC Lure Machine
Weight(Kg)	1000
Power(Kw)	13.5kw
Voltage	220V380V/Customized
Transport Package	Wooden Case
Specification	1.08*0.53*1.19 M
Trademark	Dohearts
Origin	Dongguan
Production Capacity	50/Month

Product Description

Artificial Fish Lure Swimbait Segmented Multi Jointed Soft Fishing Lures Injection Molding Machine
---Product Description
Soft Fishing Lures Injection Molding Machine can produce single color or multi color lure/bait.
---Product Features

Soft Fishing Lures Injection Molding Machine features:

-Low input, no need to cook, the product is highly transparent and does not turn yellow

-Straight screw ejected assembly.-Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.-Low-die fixed-top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.-Low-pressure closed die assembly can protect the safety of die.- Material tube can be lifted. It is easy to clean the stub bar. It is easy to fix die.-Can add single sliding mode and double sliding mode, making the operator more convenient, higher production efficiency and safer.

---Product Parameter
Parameter of Soft Fishing Lures Molding Machine

Screw Diameter	80 mm
Injection Pressure	1747 Kg/cm2
Theoretical shot volume	900 g
max shot weight(ps)	900 g
Injection Rate	160 g
Screw Stroke	150 cm3/sec
Screw Speed Max	60 rpm
Nozzle contact force	1 Ton
Number of temperature control	8
Platen size	550*660 mm
Power	13.5 KW
Weight	1000 KG
Packing Size	2.01*0.98*2.42 M & 1.08*0.53*1.19 M

---ApplicationSamples of Artificial Fish Lure Swimbait Segmented Multi Jointed Soft Fishing Lures Injection Molding Machine---Our Service
Pre-Sales Service
* Inquiry and consulting support. * Sample testing support. * View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.
---Packaging And Shipping---Company Information
Dong Guan Do Hearts Technology are specialized in the development and manufacturing of PVC label machine,Silicon Trademark Machine,Garments Printing,silicone coating machine,silicone printing for textile ects.
With more than 13 years of development, we have a senior and specialized group. Our company has set up a good reputation within the industry and become the earliest production base of PVC products making machine and silicon products making machine machinery all over the world.
